Vw Bug Full Flow Oil Filter System, Black AN Fittings-SS Hose-Flat Cam

Brand:

Price:
$214.95
SKU:
AC115112-01
Condition:
New
Availability:
Sold as 1 Kit

FREE SHIPPING ON ALL ORDERS
(contiguous USA only)

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

Product Description

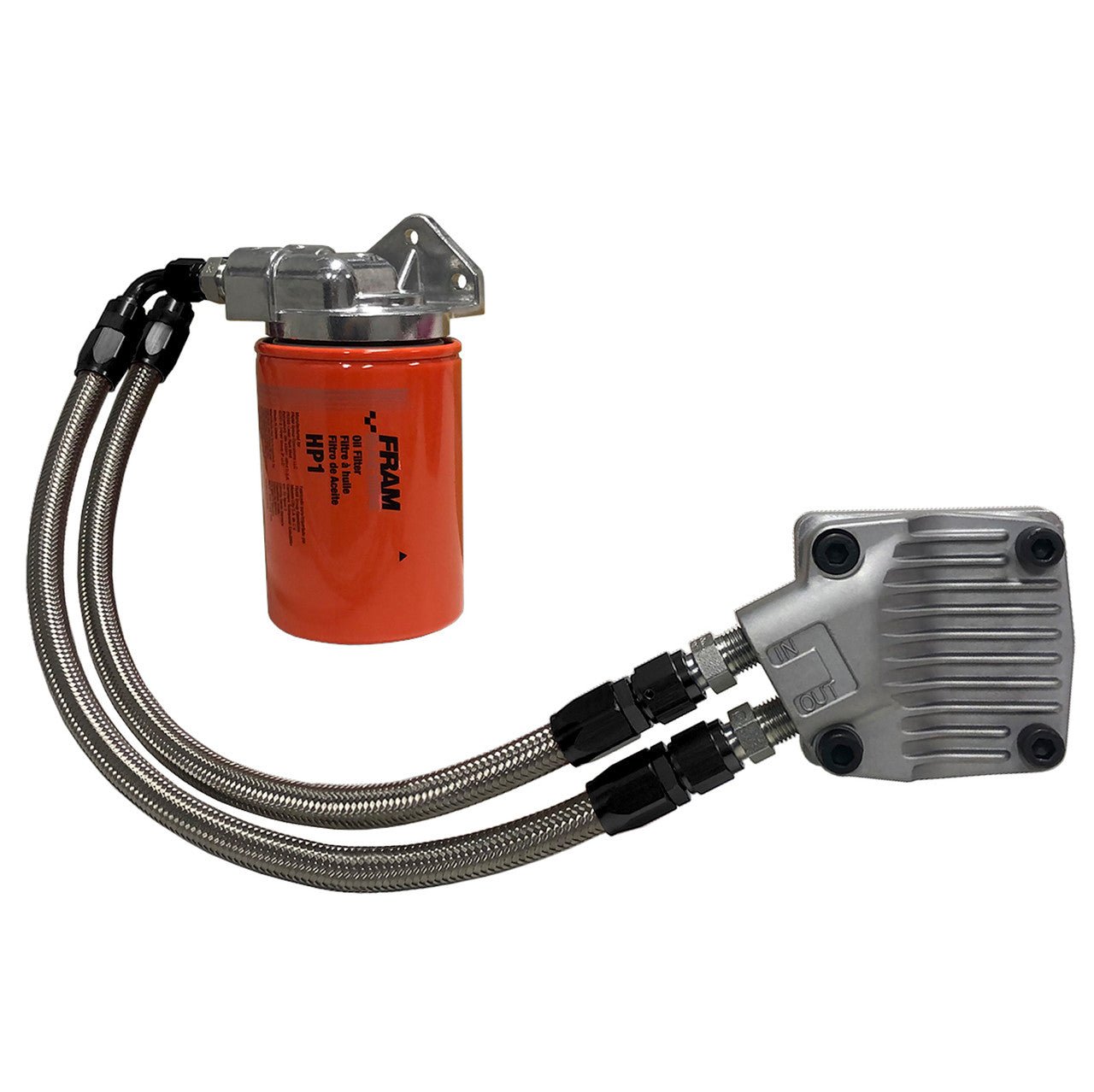

Vw Bug BOLT ON Full Flow Oil System Kit. High Performance Oil Pump (Flat Cam Style) With FRAM HP1 Spin-On Oil Filter. Premade Full Flow Oil Hoses, Black Anodized AN Fittings With High-Pressure Stainless Steel Braided Hoses.

We Take Out All the Guess Work And Headache When Full Flowing Your Vw Air-cooled Engine. Kit Comes Precut And Assembled Allowing Easy Installation From The Oil Pump To The Inner Fender Body Panel Where You Can Mount The Spin-on Oil Filter Adapter.

Includes:
Hi-Performance Full Flow Oil Pump With 32mm Gears For Flat Type Camshafts

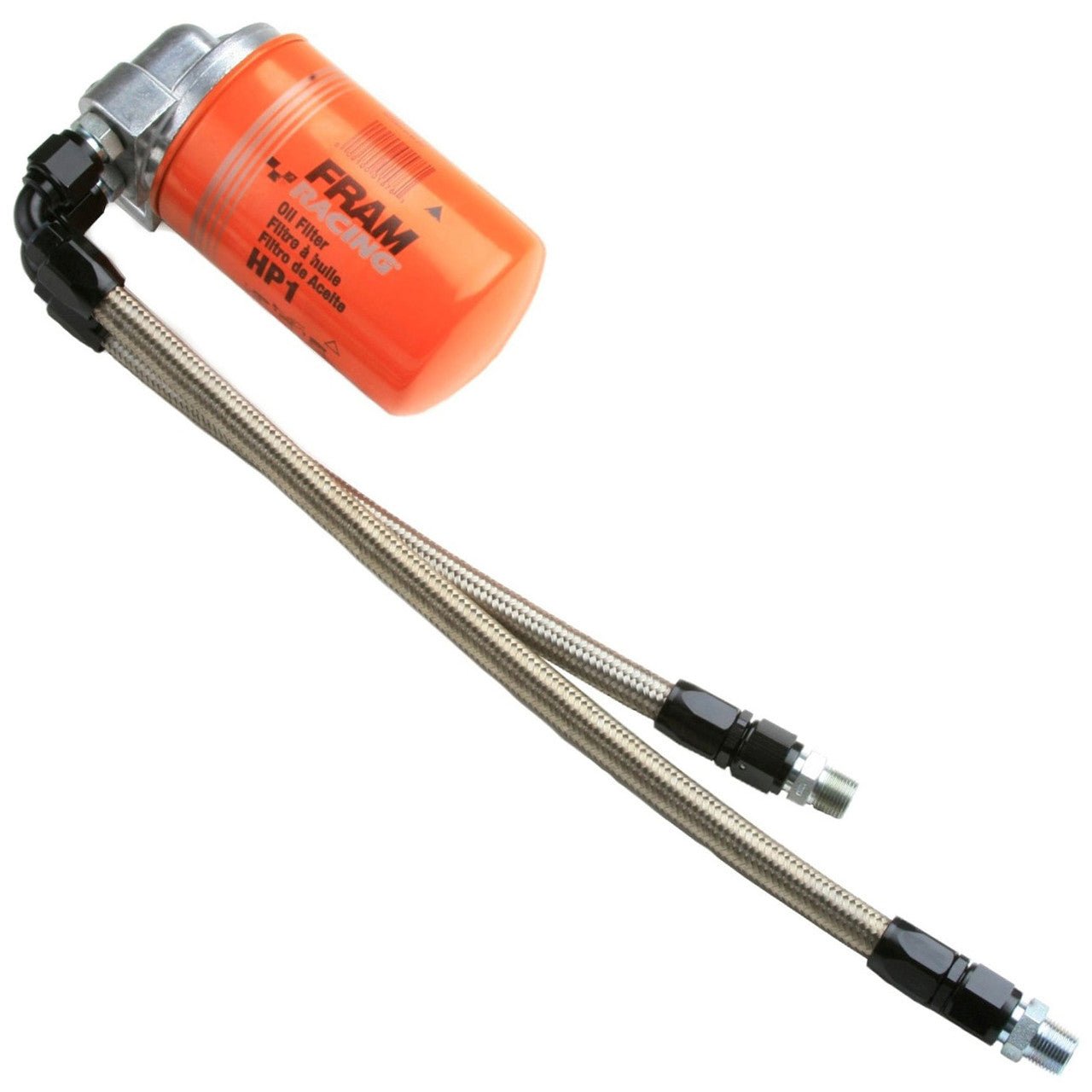

Precut High-Pressure Stainless Steel Braided Hoses With Black Anodized AN Fittings
Aluminum Oil Filter Adapter Mount

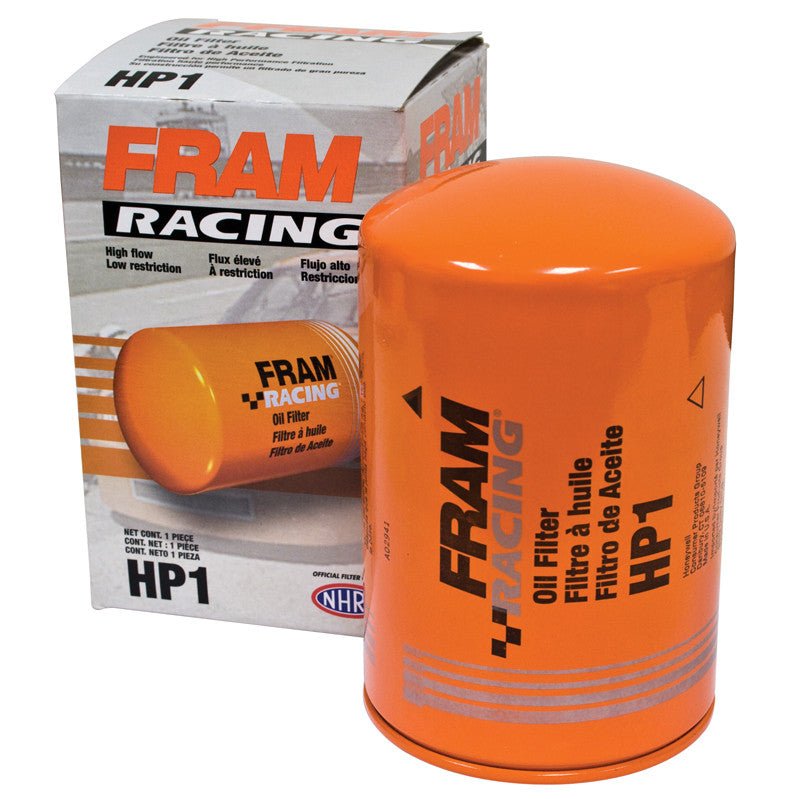

Fram Hp1 Oil Filter

Features:
Full Flow Bolt On Application
Eliminates Disassembly Of Your Engine And Expensive Case Machining
Provides Fram Filtering

Application:
Volkswagen Type 1 Bug 1300-1600cc Based Engines

Note: This Kit Is Supplied With An Oil Pump That Is Designed To Be Used With Flat Type Camshafts. Most Flat Type Camshafts Have 3 Rivets Or 3 Bolts Holding The Cam Gear To The Camshaft. Common 3 Bolt Cams Include Engle, Web, Scat And Empi Performance Cams. It Is Important That You Know Which Cam You Have Before Installing This Full Flow Kit. The Incorrect Oil Pump Will Result In Severe Engine Failure/Damage And Will Be The Sole Responsibility Of The Installer.
