Vw Bug 2180cc Engine Rebuild Kit, GTV-2 Stage 3 Heads 42X37.5 Complete With EVERYTHING, Bubble Case
- $5,999.95
- $5,999.95
- Unit price
- per
SKU:
AC198210-S34237E-SPECIAL
Free Shipping | Contiguous USA | No Purchase Minimums
Couldn't load pickup availability
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov
Moore Parts 2180cc Complete Engine Kit. Compatible For Air-cooled Volkswagen Bug, Karmann Ghia & Vw Bus.
This Kit Comes With All New Parts And Everything You Will Need To Build A Long Block 2180cc Engine, Valve Cover To Valve Cover.

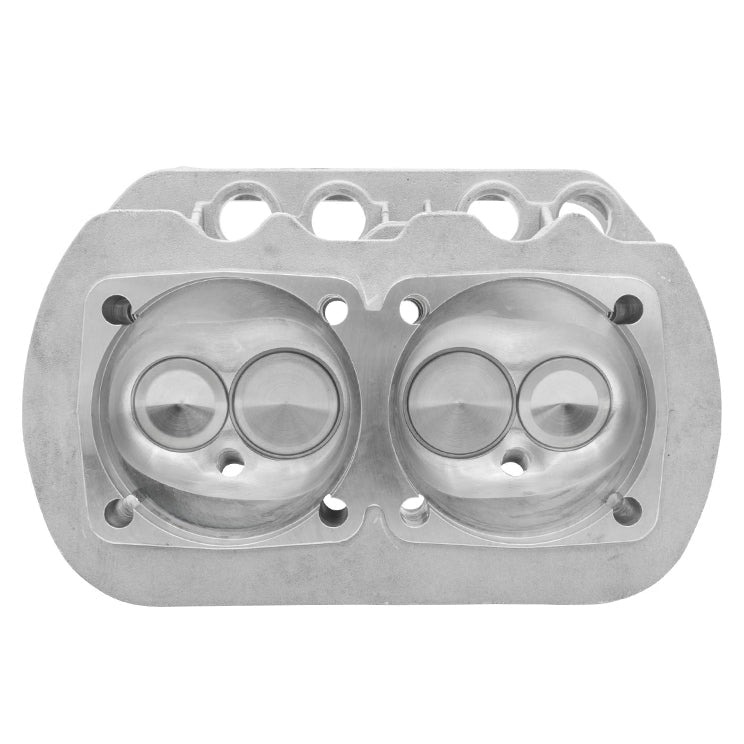

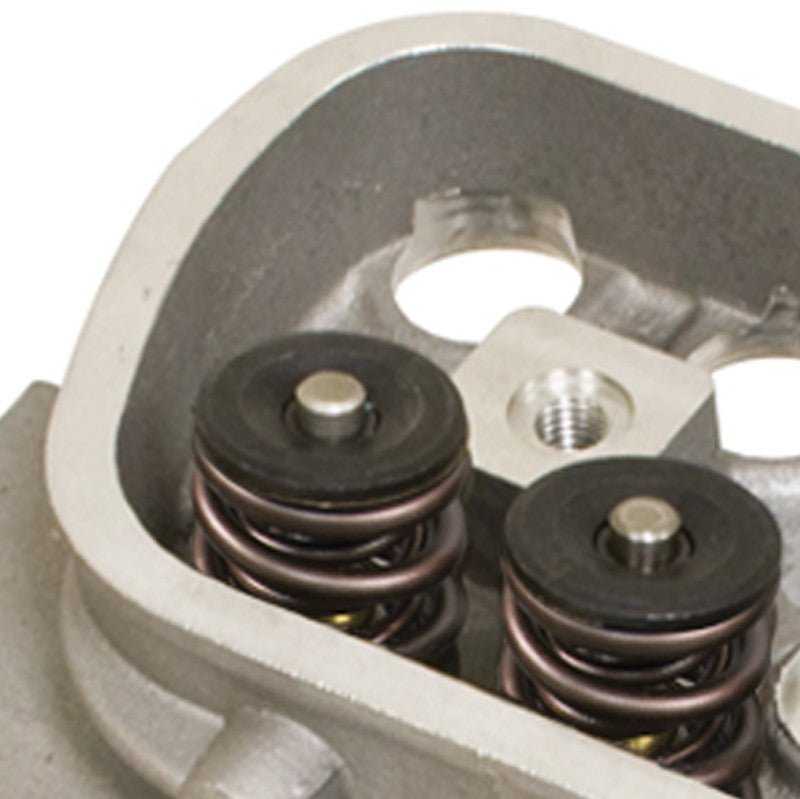

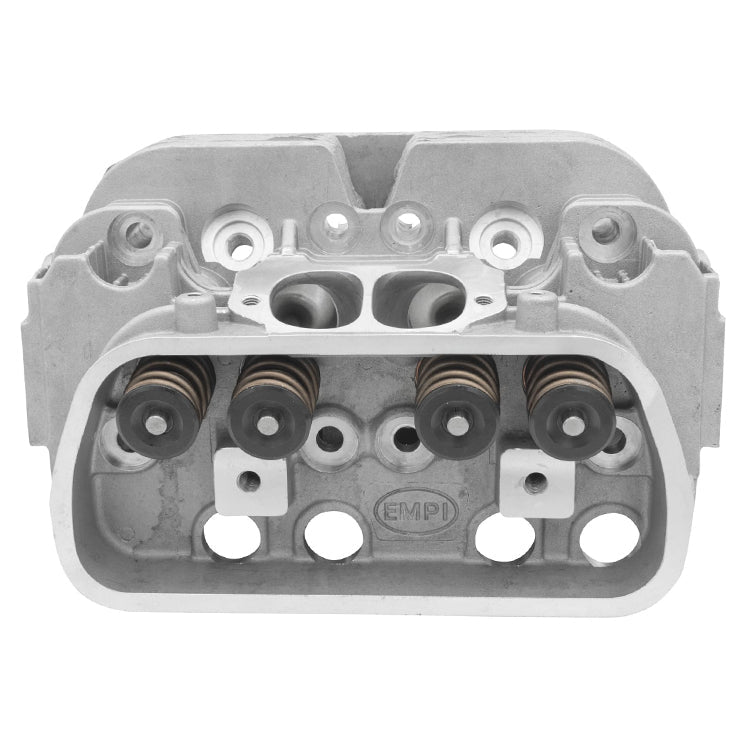

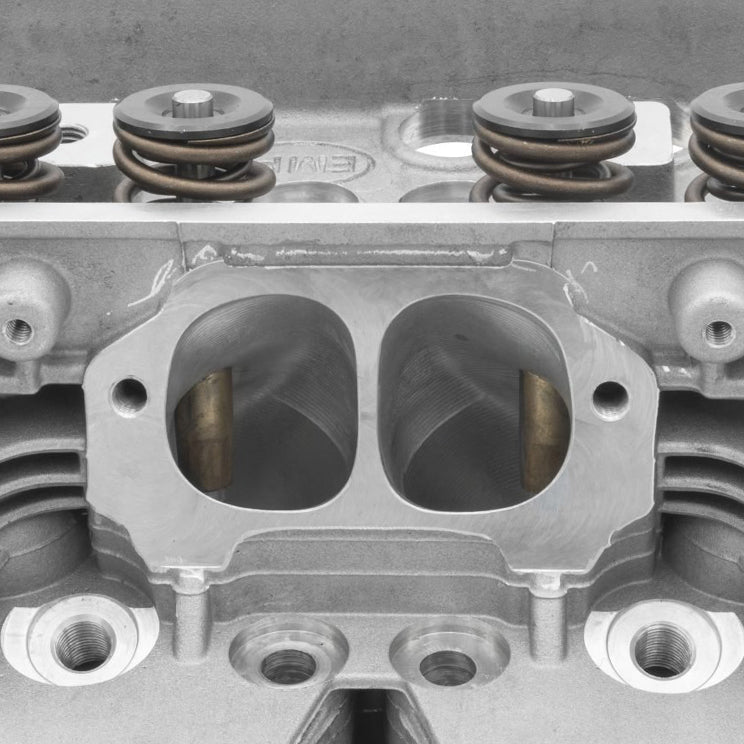

All Components In This Kit Are Top Quality And Brand New. ( NO RECONDITIONED PARTS! ) The Heavy Duty AA Pistons Include High Quality Rings & Thick Cast Iron Cylinders, Wrist Pins And Clips. Empi GTV-2 Stage 3 Cylinder Heads Come Complete With 42mm X 37.5mm Stainless Steel Manley Valves, 64.5cc Combustion Chambers, 12mm 3/4" Reach Spark Plug Holes, Dual Hi-Rev Valve Springs, Chromoly Retainers, Hardened Keepers, Rocker, Exhaust And Intake Studs. Complete With A 3-Angle Performance Valve Job, They Are Ready To Run!

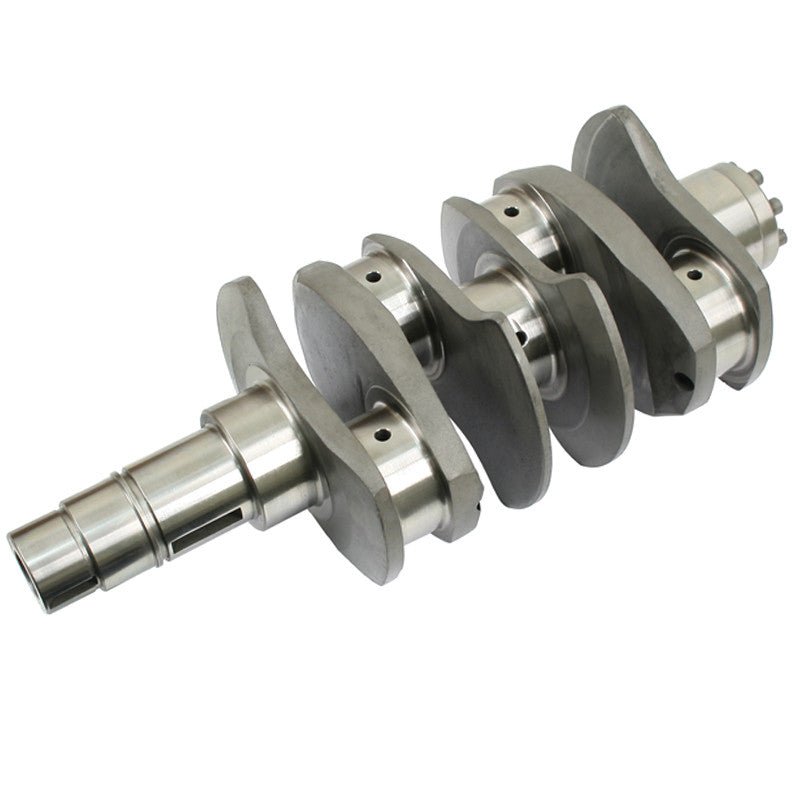

Bugpack 4340 Chromoly 82mm Stroker Crank With Vw Journals. Features Multiple Die Stamping Then Magna Fluxed, Shot Peened And All Journals Nitrided, Precision Ground And Micro Polished.

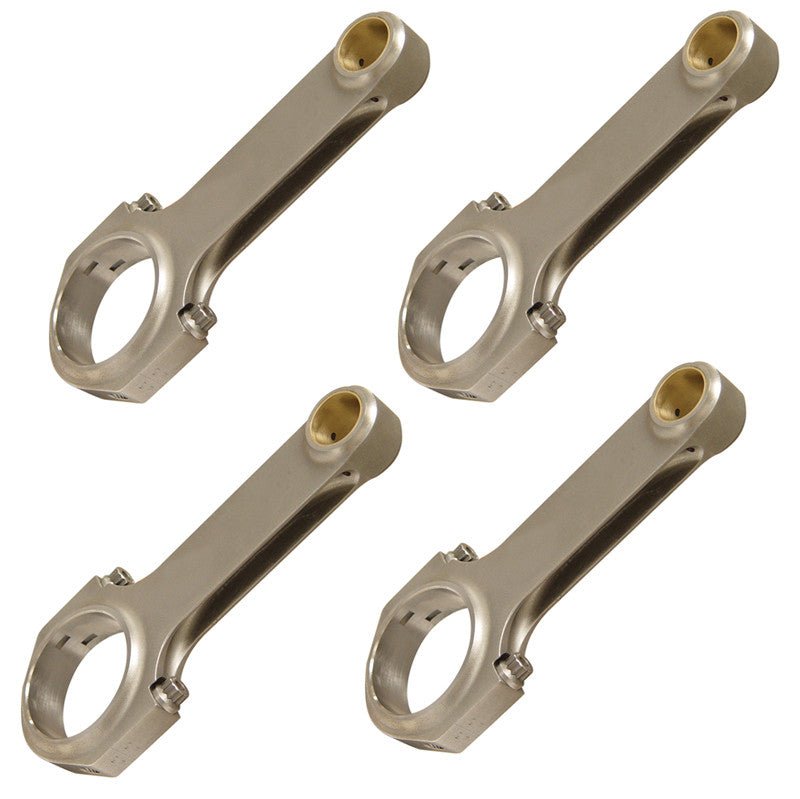

Bugpack Forged 4340 Chromoly H-Beam Rods 5.500" Length. Race Proven H-Beam Design Combines Weight And High Strength Due To The Forged 4340 Chromoly Construction. Radiused Rod Caps Help Reduce The Amount Of Clearancing Required On Stroker Applications And Are Sleeved To The Rod To Eliminate Cap Shifting.
We Also Include Engine Gasket Kit, Standard Rod Bearings, Double Thrust Cam Bearings, Stock Push Rod Tubes And NGK D8EA Spark Plugs.

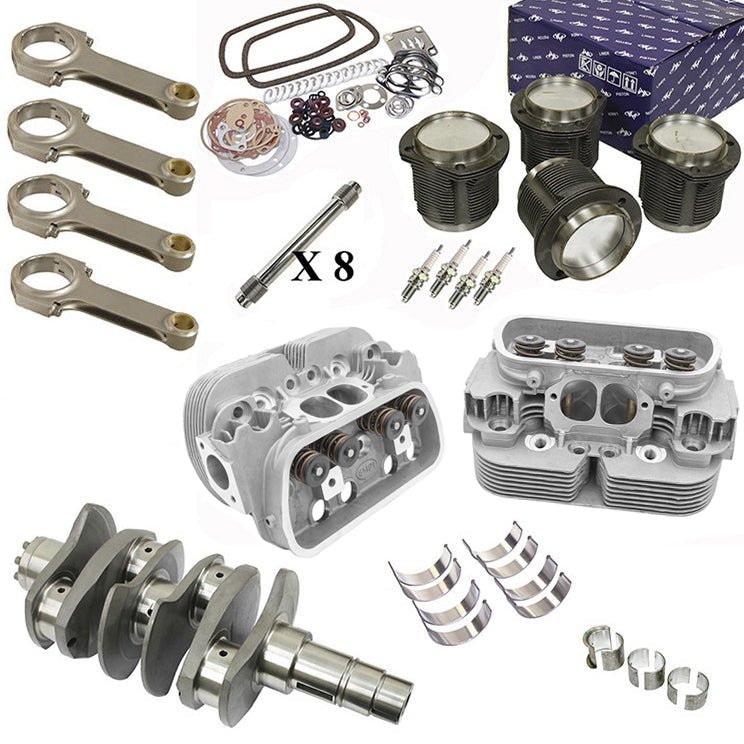

Moore Parts Kit Includes:

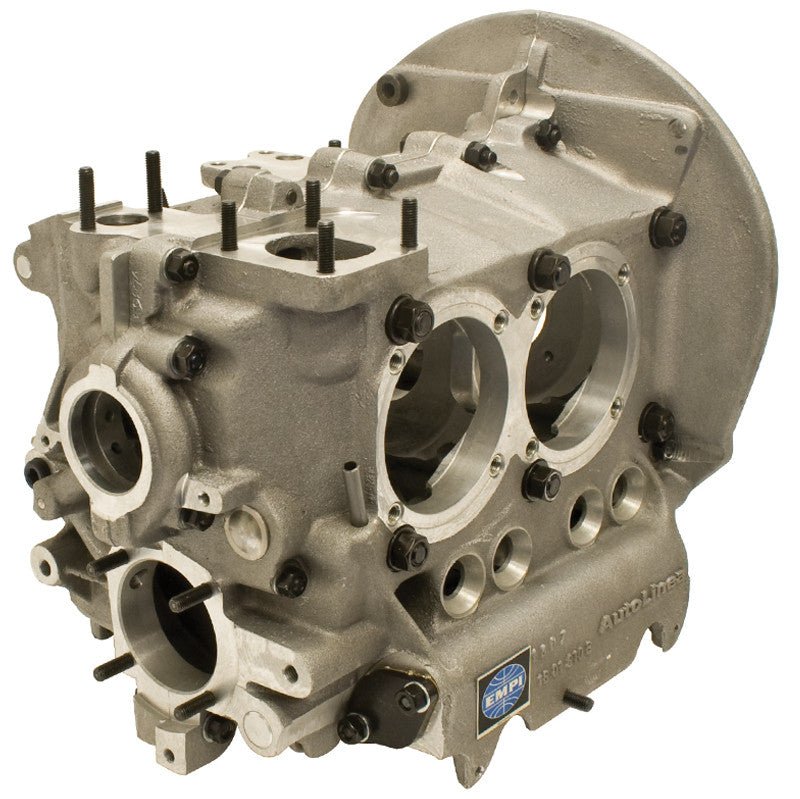

Empi H.D. Bubble Top Engine Case Machined For 94mm Barrels & 86mm Crank (Qty 1)

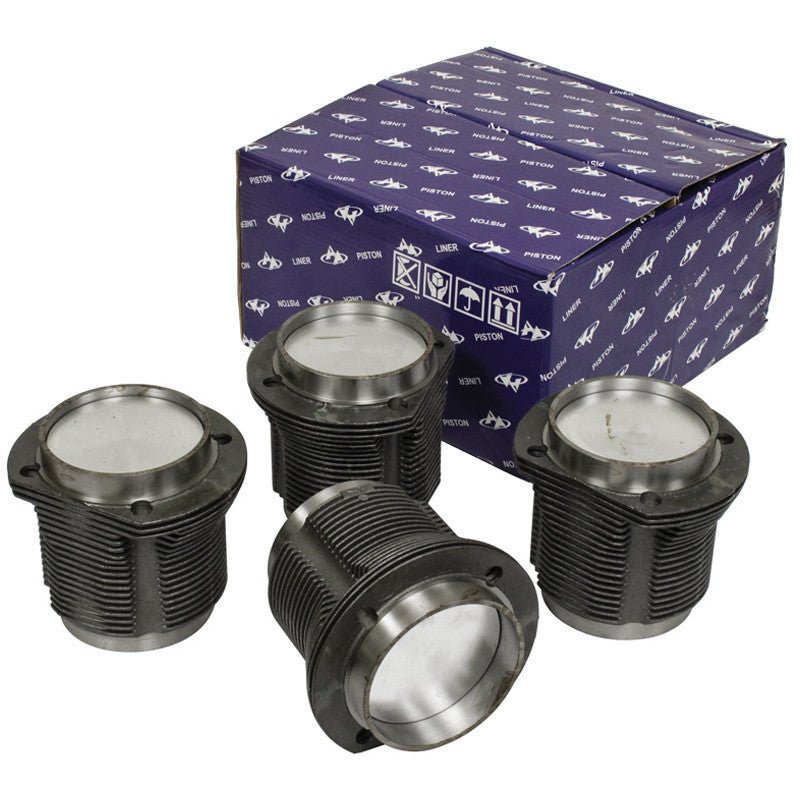

92mm AA Thick Wall Stroker Pistons & Cylinders (Set Of 4)
Empi 98-1435-B GTV-2 Stage 3 CNC Ported Cylinder Heads 42 x 37.5 Valves (Qty 2)
Bugpack 8182 Chromoly Stroker Crank (Qty 1)
Bugpack 8311 Chromoly H-Beam Rods 5.500" Length (Set Of 4)

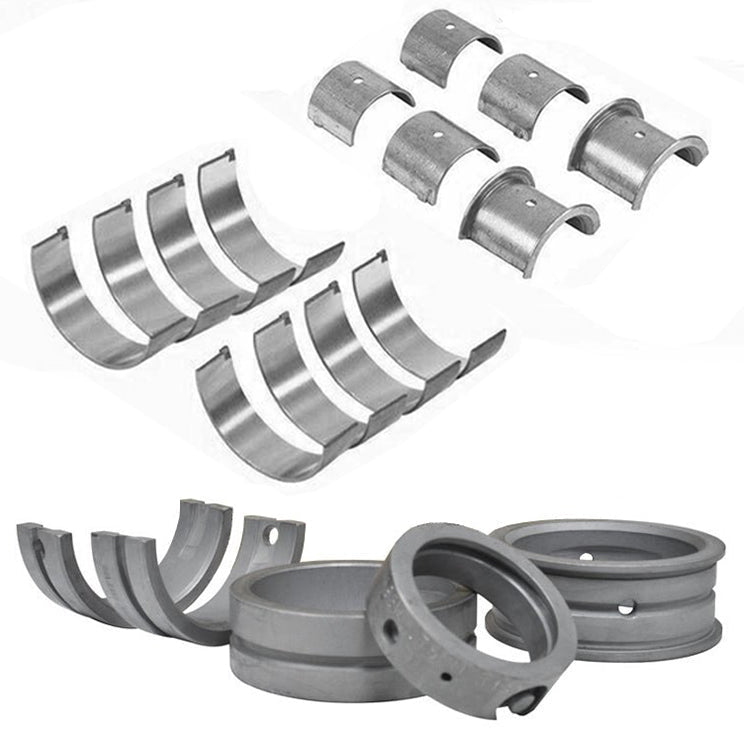

Standard Rod Bearings (Qty 1)
Double Thrust Cam Bearings (Qty 1)
Standard Main Bearings (Qty 1)

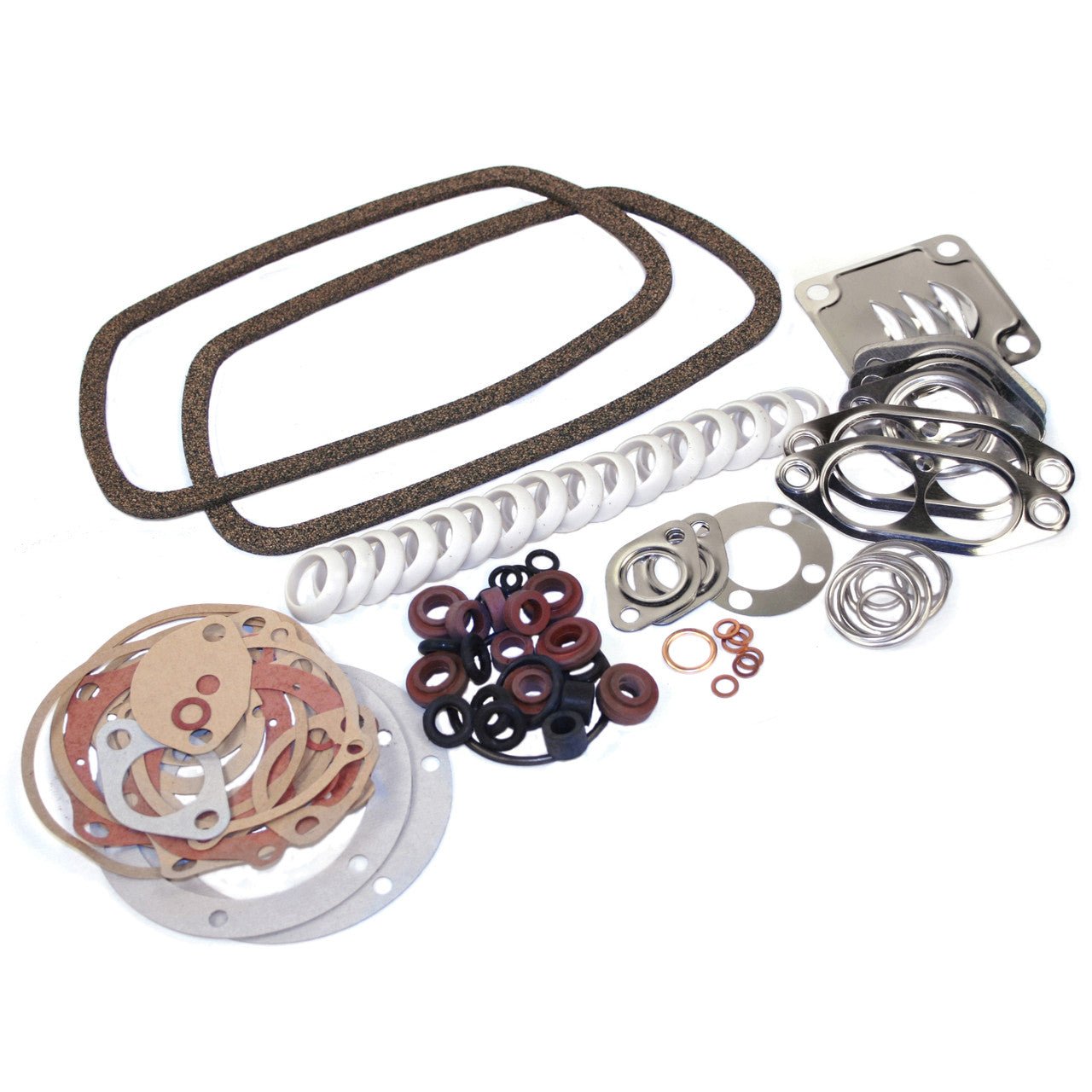

Engine Gasket Kit (Qty 1)
Elring Rear Main Seal (Qty 1)

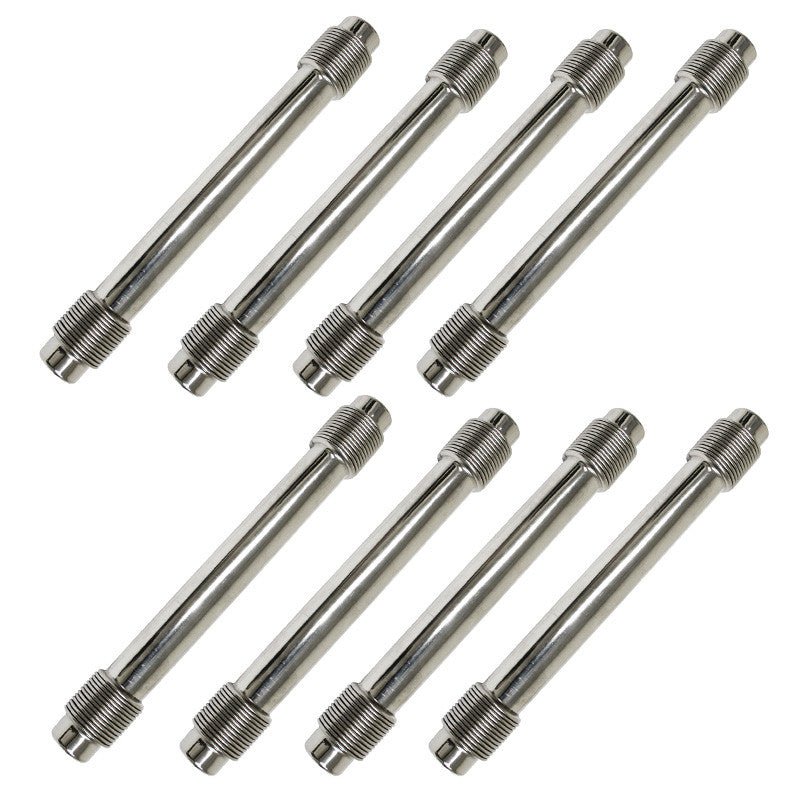

Stock 1600cc Steel Push Rod Tubes (Set Of 8)
NGK D8EA Spark Plugs (Set Of 4)
Empi Lash Caps 4006
EMPI 4099 Chromoly Lightened 8 Dowel Flywheel (Qty 1)
Chromoly Gland Nut & Washer (Qty 1)
Chromoly 10mm Head Studs With Nuts & Washers (Set Of 16)
Variety End Play Shims (Set Of 6)

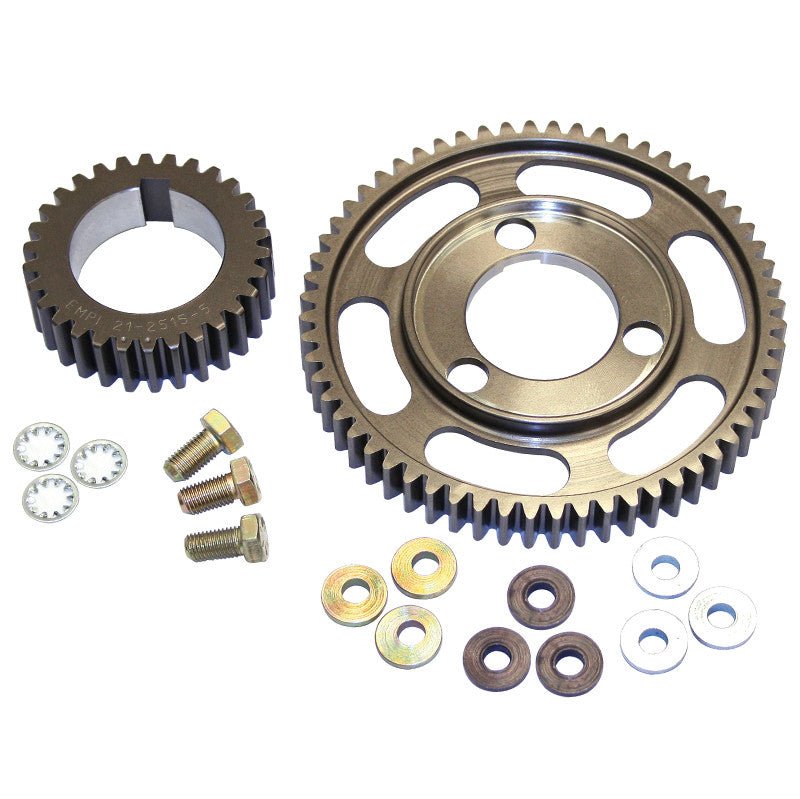

Straight Cut Gear Set, Steel On Steel
Crank Gear Spacer & Snap Ring (Qty 1)
Brass Distributor Drive Gear (Qty 1)
Distributor Pinion Gear (Qty 1)
Woodruff Keys (Qty 2)
Main Bearing Dowel Pins (Set Of 5)
Steel Cam Plug (Qty 1)
Oil Strainer & Drain Plate (Qty 1)
Oil Galley Springs & Plungers, Pair
Assembly Lube 4oz Tube (Qty 1)

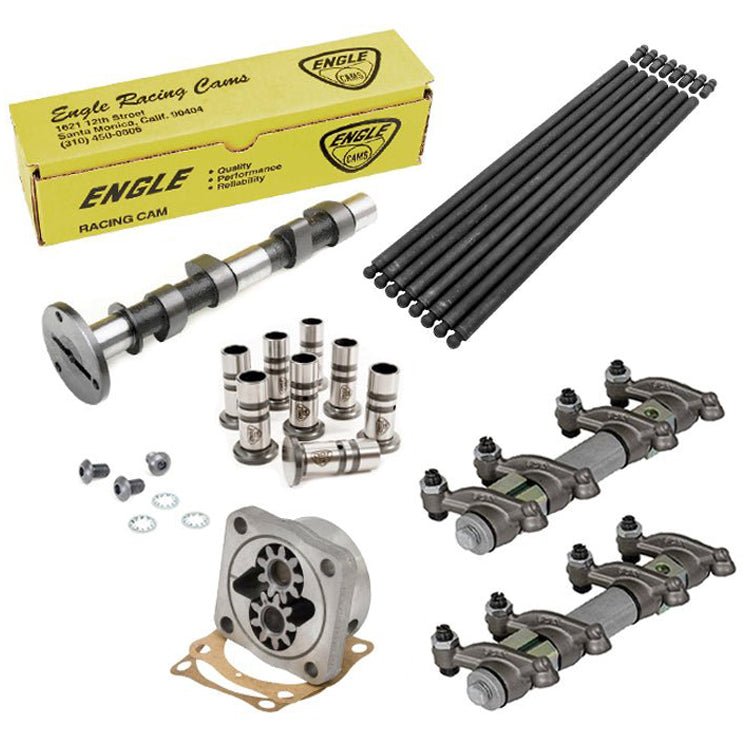

Engle W120 Camshaft (Qty 1)
Engle 6001 Lifters (Set Of 8)
Engle 6004 Cam Gear Bolts (Set Of 3)
Chromoly 3/8" Push Rods Cut To Length 11.60" (Set Of 8)
1.1 Ratio Rocker Arms With Solid Shafts, Pair
Schadek Hi Volume Oil Pump 26mm Gears (Qty 1)
Steel Oil Pump Cover (Qty 1)
Stock Black Valve Covers, Bails, Gaskets, Pair
Stock Black Cool Tins, Pair
Miscellaneous Engine Nuts & Bolts
This Kit Is Ideal For Anyone That Wants A High Quality Performance Engine With Plenty Of Horsepower For Their Daily Driver Baja Bug, Vw Beetle, Manx, Sandrail Or Dune Buggy.
Order Your Kit Today And Make Rebuilding Your Vw Fun And Affordable.
