Moore Parts 1600cc Complete Engine Kit. Compatible For Air-cooled Volkswagen Bug, Karmann Ghia & Vw Bus.

This Kit Comes With All New Parts And Everything You Will Need To Build A Long Block 1600cc Engine.

All Components In This Kit Are Top Quality And Brand New. ( NO RECONDITIONED PARTS! ) The Heavy Duty Cast Pistons Include High Quality Rings & Cast Iron Cylinders, Wrist Pins And Clips. Cylinder Heads Come Complete With 35.5mm X 32mm Valves, 14mm 1/2" Reach Spark Plug Holes, Stock Valve Springs, Steel Retainers, Hardened Keepers, Rocker, Exhaust And Intake Studs. They Are Ready To Run!
Empi 4140 Chromoly 69mm Counter-weighted Crank With Vw Journals. Features Die Stamping Then All Journals Nitrided, Precision Ground And Micro Polished.
Bugpack Forged 4340 Chromoly H-Beam Rods 5.400" Length. Race Proven H-Beam Design Combines Weight And High Strength Due To The Forged 4340 Chromoly Construction. Radiused Rod Caps Help Reduce The Amount Of Clearancing Required On Stroker Applications And Are Sleeved To The Rod To Eliminate Cap Shifting.
We Also Include Engine Gasket Kit, Standard Rod Bearings, Double Thrust Cam Bearings, Stock Push Rod Tubes And NGK Spark Plugs.

Moore Parts Kit Includes:

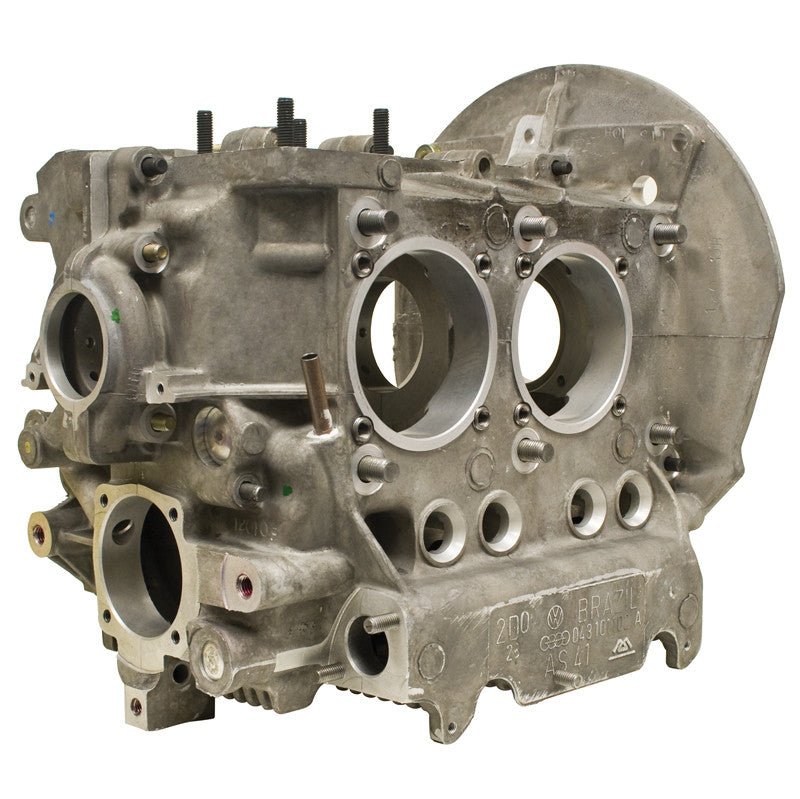

New Stock AS41 Engine Case (Qty 1)
85.5mm AA Cast Pistons & Cylinders (Set Of 4)
New Dual Port Complete Cylinder Heads (Qty 2)
Empi 8120 Chromoly Counter-weighted Crank (Qty 1)
Bugpack 8310 Chromoly H-Beam Rods 5.400" Length (Set Of 4)
Standard Rod Bearings (Qty 1)
Double Thrust Cam Bearings (Qty 1)
Standard Main Bearings (Qty 1)
Engine Gasket Kit (Qty 1)
Stock 1600cc Steel Push Rod Tubes (Set Of 8)
NGK Spark Plugs (Set Of 4)
Empi Lash Caps 4006 (Set Of 8)
EMPI 4099 Chromoly Lightened 8 Dowel Flywheel (Qty 1)
Chromoly Gland Nut & Washer (Qty 1)
Chromoly 8mm Head Studs With Nuts & Washers (Set Of 16)
Variety End Play Shims (Set Of 6)
Crank Cam Gear With Spacer & Snap Ring (Qty 1)
Brass Distributor Drive Gear (Qty 1)
Distributor Pinion Gear (Qty 1)
Woodruff Keys (Qty 2)
Main Bearing Dowel Pins (Set Of 5)
Steel Cam Plug (Qty 1)
Oil Strainer & Drain Plate (Qty 1)
Oil Galley Springs & Plungers, Pair
Assembly Lube 4oz Tube (Qty 1)
New Stock Flat Camshaft With Gear (Qty 1)
New Stock Moresa Lifters (Set Of 8)
Chromoly 5/16" Push Rods Stock Length 11.06" (Set Of 8)
1.1 Ratio Rocker Arms With Solid Shafts, Pair
Schadek Hi Volume Oil Pump 26mm Gears (Qty 1)
Steel Oil Pump Cover (Qty 1)

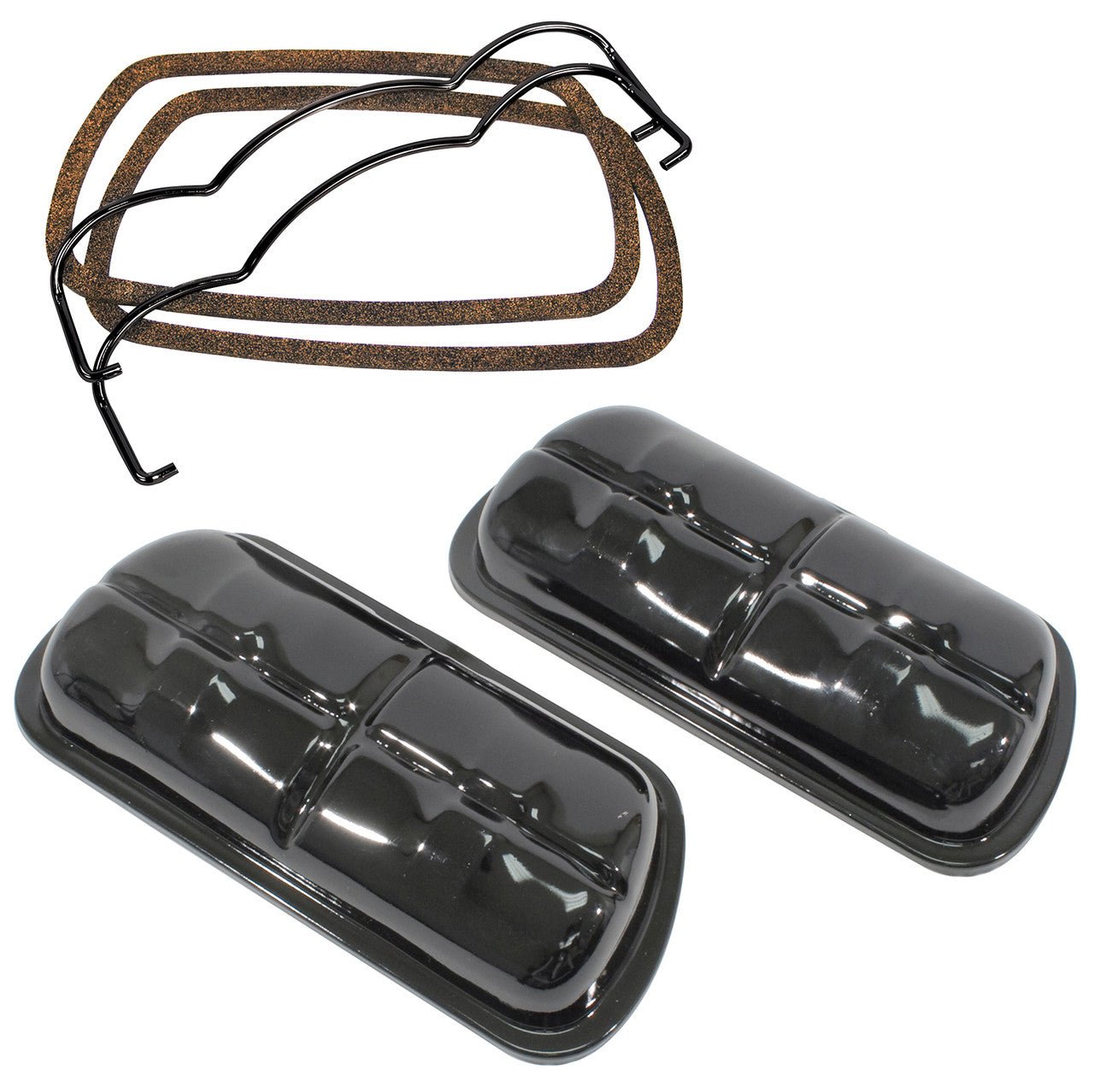

Stock Black Valve Covers, Bails, Gaskets, Pair
Stock Black Cool Tins, Pair
Miscellaneous Engine Nuts & Bolts

This Kit Is Ideal For Anyone Who Needs Everything To Complete A Heavy Duty Quality Performance Engine For Their Daily Driver Baja Bug, Vw Beetle, Manx, Sandrail Or Dune Buggy. Order Your Kit Today And Make Rebuilding Your Vw Fun And Affordable.
