SCAT 4340 I-Beam Rods 5.500 VW Journal ARP2000 Set of 4

$259.95
$259.95

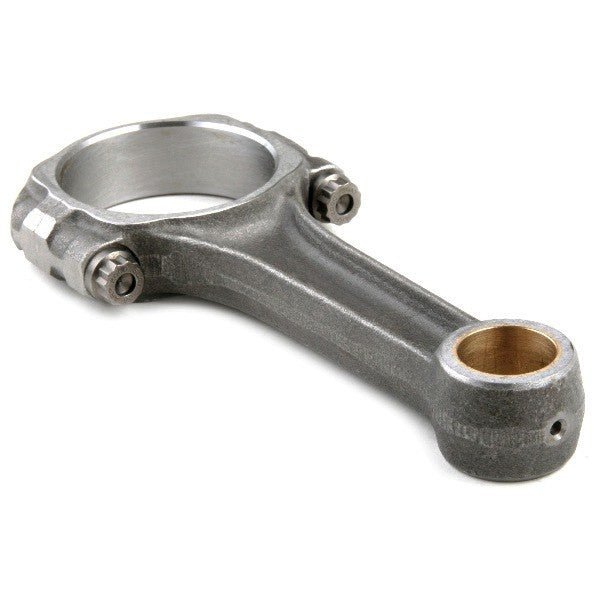

Scat 4340 Chromoly I - Beam Connecting RodsVw Journals 5.500 Length - Moore Parts
Scat 4340 Chromoly I - Beam Connecting RodsVw Journals 5.500 Length - Moore Parts

SCAT 4340 I-Beam Rods 5.500 VW Journal ARP2000 Set of 4

SKU: SCATROD-ICR55003
$259.95
$259.95

Free Shipping | Contiguous USA | No Purchase Minimums

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

PRODUCT DESCRIPTION

Upgrade your high-performance Volkswagen engine with these premium SCAT 4340 Chromoly I-Beam Connecting Rods. Designed for serious racing and performance applications, these rods feature a 5.500" center-to-center length, VW journal sizing, and heavy-duty 3/8" ARP2000 rod bolts for superior strength and reliability.

Manufactured from high-quality 4340 chromoly steel with high nickel and chrome content, SCAT connecting rods are precision machined, balanced, and rigorously tested to meet exacting aerospace-level tolerances.

Key Features

  • 4340 chromoly I-beam connecting rods
  • 5.500" center-to-center length
  • VW journal configuration
  • Equipped with 3/8" ARP2000 rod bolts
  • Stronger than standard 5/16" bolt designs
  • Precision machined and balanced by SCAT
  • Designed for high-performance VW air-cooled engines

Precision Machining Tolerances

  • Center-to-center length: +/- .001"
  • Big end barrel/bellmouth/taper: +/- .0002"
  • Big end bore: +/- .0002"
  • Little end bore: +/- .0002"
  • Balanced end-for-end within +/- 1 gram per set

Manufacturing & Quality Features

  • Computerized aerospace-level machining processes
  • Multi-step heat treated 4340 material
  • High nickel & chrome content for superior tensile strength
  • Shot peened for added durability
  • X-rayed, sonic tested, and magnaflux inspected
  • Precision honed using Sunnen diamond tooling equipment
  • Temperature-controlled machining processes for exact sizing

Applications

Perfect for:

  • High Performance Volkswagen Air-Cooled Engines
  • Racing Engines
  • Turbo & High RPM Applications
  • Performance Engine Builds

Specifications

  • Rod Style: I-Beam
  • Material: 4340 Chromoly Steel
  • Length: 5.500"
  • Journal Type: VW Journal
  • Rod Bolts: 3/8" ARP2000
  • SCAT Part Number:
    • ICR5500-3

Package Includes

  • Set of 4 Connecting Rods

Why Choose SCAT Connecting Rods?

SCAT rods are trusted by engine builders worldwide for their precision machining, exceptional strength, and race-proven reliability in demanding high-performance applications.
