EMPI Modified 30 PICT-1 Carburetor SCORE Race VW 98-1287-B
- $284.95
- $284.95
- Unit price
- per
SKU:
98-1287-B
Free Shipping | Contiguous USA | No Purchase Minimums
Couldn't load pickup availability
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

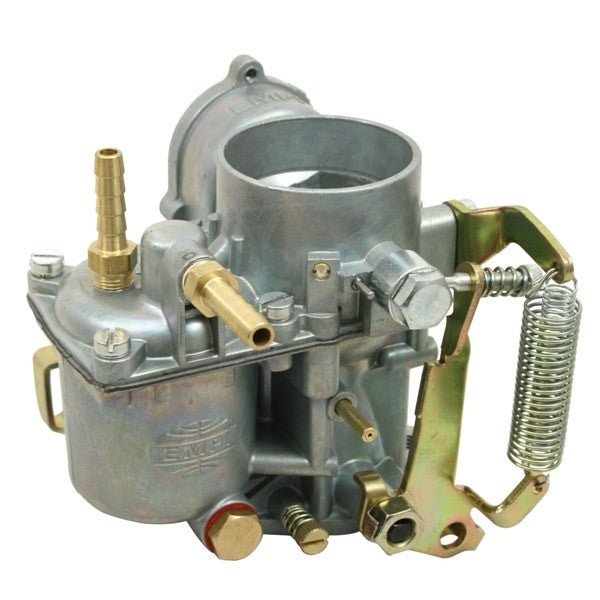

Built for serious off-road racers and hardcore competitors, the EMPI 98-1287-B Modified 30 PICT-1 Carburetor is a race-prepped version of EMPI’s popular 30 PICT-1. This carburetor has been Baja 1000 tested and is SCORE approved for classes 1-2/1600, 5/1600, 9, and 11, making it an excellent choice for desert racing, Class 11 builds, and competition off-road Volkswagens.
To improve reliability in rough terrain, the float bowl is externally vented to help reduce fuel slosh and flooding. The original vent tube has been removed and plugged, the fuel inlet is threaded with a supplied screw-in fitting, and dual return springs are added to reduce the risk of a stuck-open throttle. The choke assembly has been removed and both sides are plugged for race-ready simplicity.
Key Features
- Modified EMPI 30 PICT-1 race carburetor
- Baja 1000 tested and SCORE approved
- Designed for off-road racing and harsh terrain use
- External float bowl venting helps prevent fuel slosh and flooding
- Original vent tube removed and plugged
- Threaded fuel inlet with screw-in fitting included
- Dual return springs for added throttle safety
- Choke assembly removed and ports plugged
- Ideal for Class 11, Class 9, and 1600 race applications
Specifications
- EMPI Part Number:
- 98-1287-B
- Carburetor Type:
- Modified 30 PICT-1
- Main Jet:
- 120
- Idle Jet:
- 55
- Air Correction Jet:
- 115
- Pump Jet:
- 50
- Needle Valve:
- 150
SCORE Approved Classes
- 1-2/1600
- 5/1600
- 9
- 11
Race Modifications
- Externally vented float bowl
- Vent tube removed and plugged
- Threaded fuel inlet with screw-in fitting supplied
- Dual throttle return springs
- Choke assembly removed and plugged on both sides
Rebuild Kit Options
- Carburetor Rebuild Kit:
- 00-2500-0
- 00-9936-0
- Deluxe Carburetor Rebuild Kit:
- 00-2505-0
Why Choose the EMPI Modified 30 PICT-1?
This carburetor is purpose-built for racers who need the proven simplicity of a 30 PICT-1 with added off-road reliability. Its Baja-tested modifications help keep fuel under control and improve throttle safety in demanding racing conditions.
