EMPI 30/31 PICT-3 Carburetor 12V Choke VW 98-1225-B

SKU: 98-1225-B
$183.95
$183.95

Free Shipping | Contiguous USA | No Purchase Minimums

WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

PRODUCT DESCRIPTION

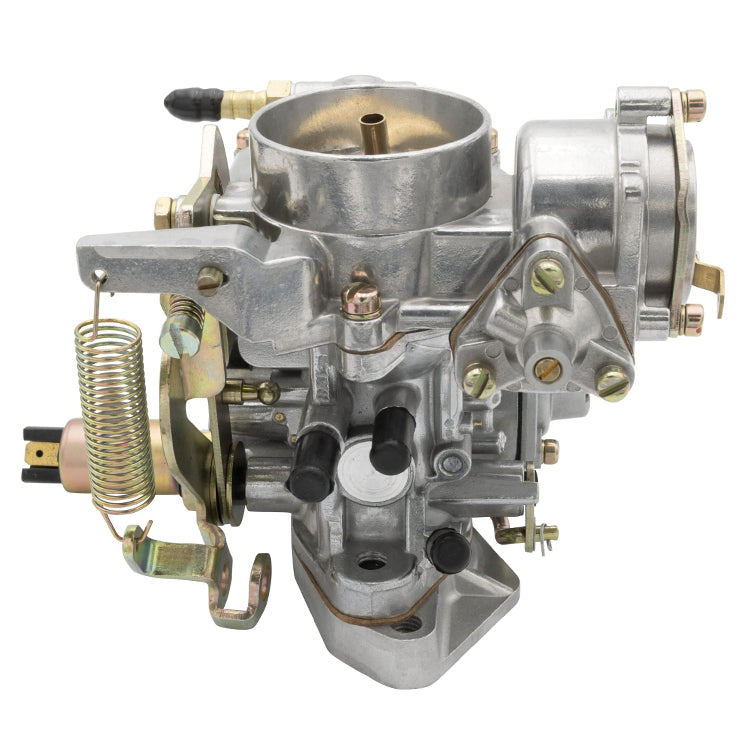

The EMPI 30/31 PICT-3 Carburetor is a versatile stock-style replacement carburetor recommended for Volkswagen air-cooled engines up to 1600cc. Known for its easy setup and dependable drivability, this carburetor fits both single-port and dual-port manifolds and works especially well with the popular 009 distributor, helping reduce the chance of flat spots.

It features a 12-volt electric choke, 12-volt idle shut-off solenoid, and an SVDA vacuum port for improved compatibility with various ignition setups. This carburetor also includes an adapter and mounting hardware, making it a convenient installation solution.

Key Features

  • New EMPI 30/31 PICT-3 carburetor
  • Recommended for engines up to 1600cc
  • Fits both single-port and dual-port intake manifolds
  • Works well with 009 distributors with reduced flat spot tendency
  • Includes 12-volt electric choke
  • Features 12-volt idle shut-off solenoid
  • Includes SVDA vacuum port
  • Direct replacement for 12-volt 30 PICT single-port applications
  • Throttle shaft is bushed on both ends for improved durability
  • Includes adapter and mounting hardware

Specifications

  • EMPI Part Number:
    • 98-1225-B
  • Carburetor Type:
    • 30/31 PICT-3
  • Choke:
    • 12-Volt Electric Choke
  • Idle Shut-Off Solenoid:
    • 12-Volt
  • Main Jet:
    • 120
  • Idle Jet:
    • 50
  • Air Correction Jet:
    • 120
  • Pump Jet:
    • 60
  • Needle Valve:
    • 150

Included

  • Carburetor
  • Adapter
  • Mounting Hardware

Rebuild Kit Options

  • Carburetor Rebuild Kit:
    • 00-2500-0
    • 00-9936-0
  • Deluxe Carburetor Rebuild Kit:
    • 00-2505-0

Why Choose the EMPI 30/31 PICT-3?

This carburetor is an excellent all-around replacement for stock and mild performance Volkswagen engines. Its compatibility with both single- and dual-port manifolds, combined with easy tuning and reliable street performance, makes it a popular upgrade for Beetle, Bus, Ghia, and other air-cooled VW applications.
