Blue Sea Red Dual Circuit Plus Battery Switch Combines Batteries K4-16-131
- $78.95
- $78.95
- Unit price
- per
SKU:
K4-16-131
Free Shipping | Contiguous USA | No Purchase Minimums
Couldn't load pickup availability
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov

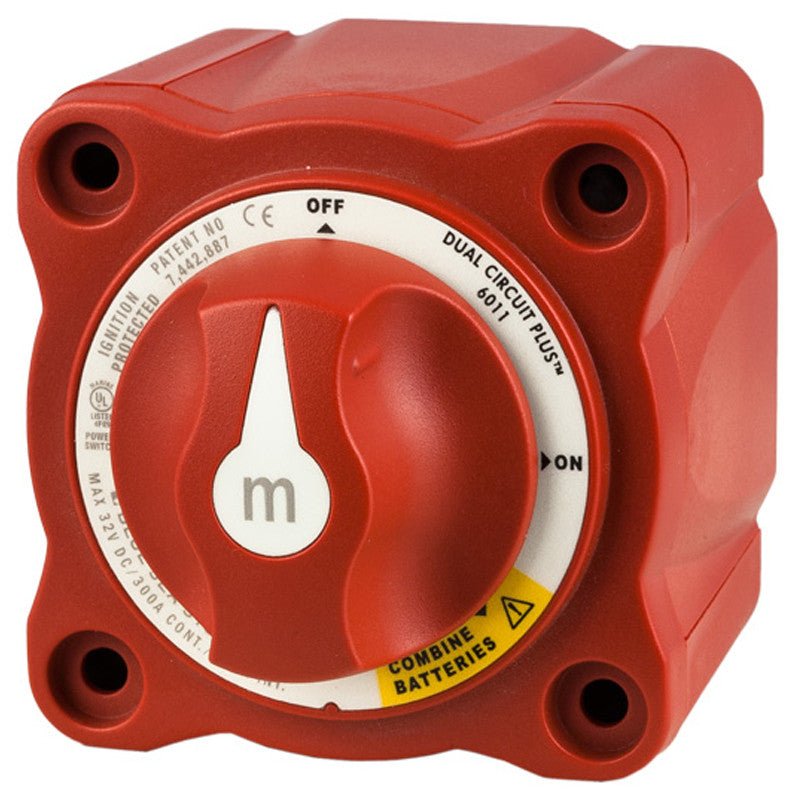

Blue Sea M-Series Red Dual Circuit Plus Battery Switch With Knob, Dual Battery Operation.
Features:
Simultaneously Switches Two Isolated Battery Banks Or Combines Battery Banks To All Loads
Make Before Break Contact Design Allows Switching Between Battery Banks Without Power Interruption
Ignition Protected—Safe For Installation Aboard Gasoline Powered Boats
Case Design Allows Surface Or Rear Panel Mounting
Specs:
Switch Type - Dual Circuit Plus
Color - Red
Switch Positions - 3
Battery Combine - Yes
Alternator Field Disconnect - NO
Maximum Voltage - 32V DC
Continuous Rating - 300 Amps
Intermittent Rating - 450 Amps 5 Minutes
Cranking Rating 30 Sec - 675Amps Per Circuit
Battery Inputs - 2
Cable Size To Meet Ratings - 4/0Awg
Mounting Holes - Accept #10 Screw
Terminal Stud Size - 3/8" Ring Terminals
Weight - 0.80lb (0.36 kg)
Sold As Each
16-131 K-Four Switches
